Walls & Soffit
KEY FEATURES
• 12" coverage option
• 24 & 22 gauge Tru-gaugeTM
• .032 & .040 Aluminum
• 20 and 18 gauge, .050 and .063 Aluminum available
(Please inquire)
• Custom Lengths 3' to 35'
(Inquire for longer or shorter lengths)
• For panels over 14 ft. in length, please inquire with a
NMP Representative. Consider thermal movement,
points of attachment, and substrate. Longer panel
lengths are more difficult to install as they can change
shape, cause distortion ( “oil canning”), and are
vulnerable to “folding” or other damage.
• 2' Shortcut capability (Fee applicable)
• Concealed Fasteners: fasteners cannot leak
• Versatile in wall and soffit applications
• Panels being installed on open frame building, inquire

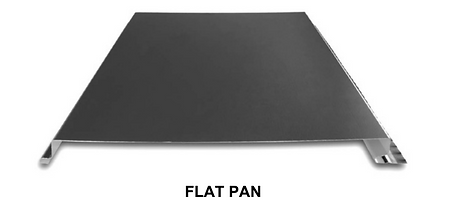

• Panel options: Vented, Striations, Single V-Groove,
Double V-Groove, and Flat Pan (only available in
24 & 22 gauge, and .032 & .040 Aluminum)
• “Oil canning” is an inherent characteristic of roof
and wall products, and not a defect, which is not
Walls & Soffit
KEY FEATURES
• 11" to 15" coverage options
• 24 & 22 gauge Tru-GaugeTM
• .032 & .040 Aluminum
• Custom Lengths 3' to 35'
(Inquire on longer or shorter lengths)
• For panels over 14 ft. in length, please inquire with a NMP
Representative. Consider thermal movement, points of
attachment, and substrate. Longer panel lengths are more
difficult to install as they can change shape, cause
distortion ( “oil canning”), and are vulnerable to “folding” or
other damage.
• 2' Shortcut capability (Fee applicable)
• Concealed Fasteners: fasteners cannot leak
• Versatile in wall and soffit applications
• Panels being installed on open frame building, inquire
• Panel options: Vented, Striations, Single V-Groove,
Double V-Groove, and Flat Pan
• ShadowLineTM can be perforated for soffit applications
• “Oil canning” is an inherent characteristic of roof and wall
products, and not a defect, which is not a cause for panel
AVAILABLE COLORS:
Availability varies by color and gauge.
Non-standard combinations require special pricing, minimum quantities, and extended lead times. Final details will be confirmed upon order entry.
